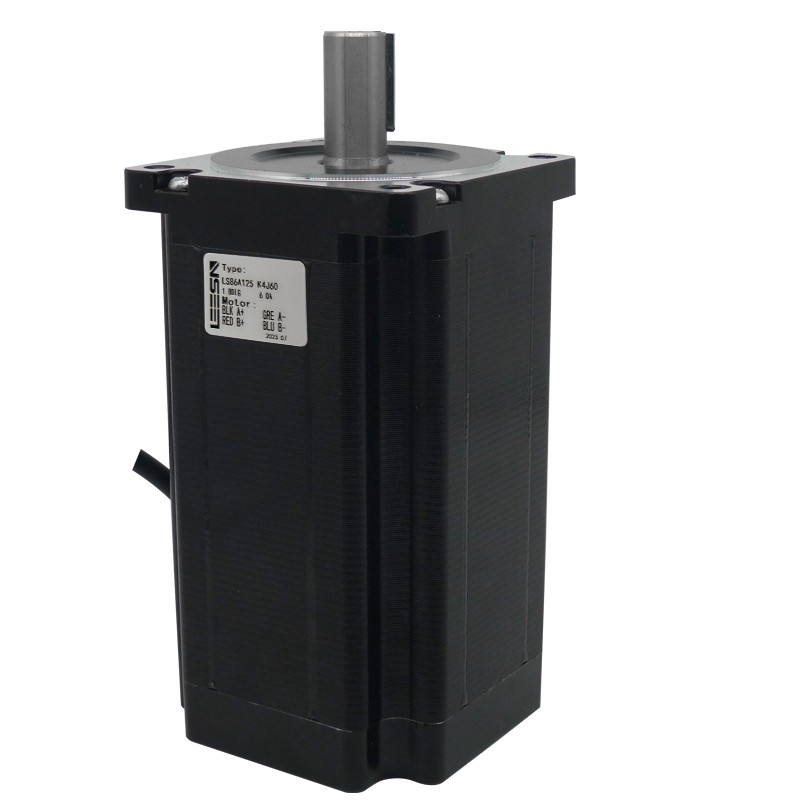

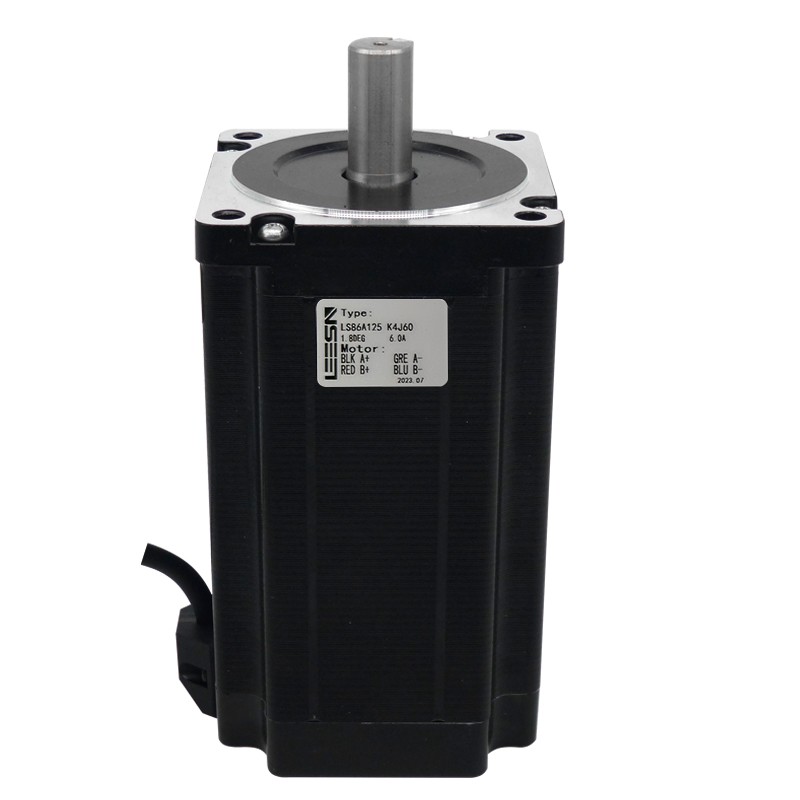

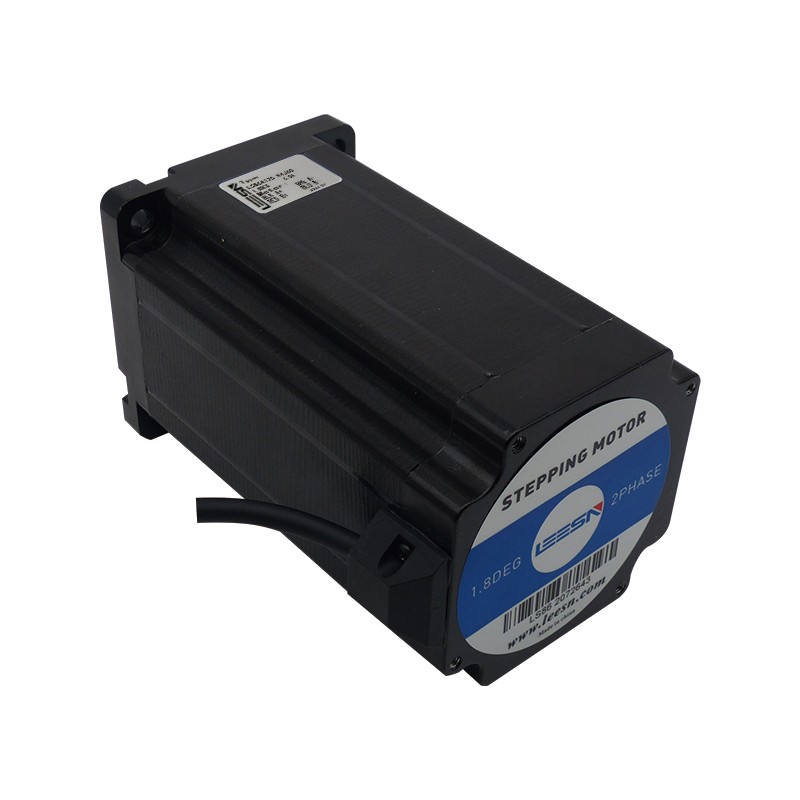

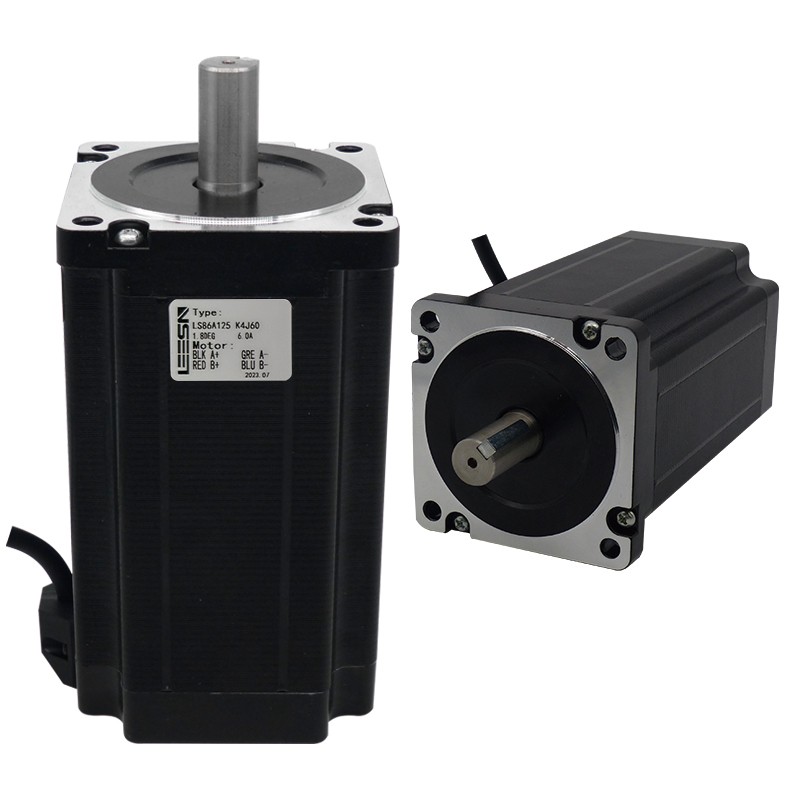

LS86A125-K4J60 Hybrid Stepper Motors

LEESN new-generation 86mm*86mm(NEMA34) two-phase 1.8° open-loop stepper motor with mounting hole distance of 69.6mm, low heating, high stability, high consistency, greater torque, and higher performance, recommended for drivers DMA860, DMA860H, and ECA110.

① Spindle mode:
Provide single flat, double flat, keyway, hobbing and other shaft delivery modes;

② Lead mode:
According to different application requirements, provide customized winding and routing methods;

③ Accessories selection:
A variety of accessories for stepper motors are available, such as encoders, planetary reducers, power off brakes.

Stepper motor is a kind of mechanical device that converts electrical pulse directly into Angle position, the amount of Angle depends on the number of pulses, it and its matching stepper motor drive device together constitute a set of simple control, but low cost open-loop system.

Matching products

Specification parameters
  • Phase number
    two-phase
  • Step Angle
    1.8 °
  • Step Angle error
    Below ±0.09°
  • Fuselage length
    151mm
  • Axis length
    32mm
  • Shaft diameter
    14mm
  • Rated current
    6.0 A
  • Holding torque
    12.5 N.M
  • Phase resistance
    0.75 Ω
  • Phase inductance
    8.2 mH
  • Moment of inertia
    ≈4000g.c㎡
  • weight
    ≈5200g
  • Service temperature range
    0 ℃ + 50 ℃
  • Service humidity range
    20%RH - 90%RH
